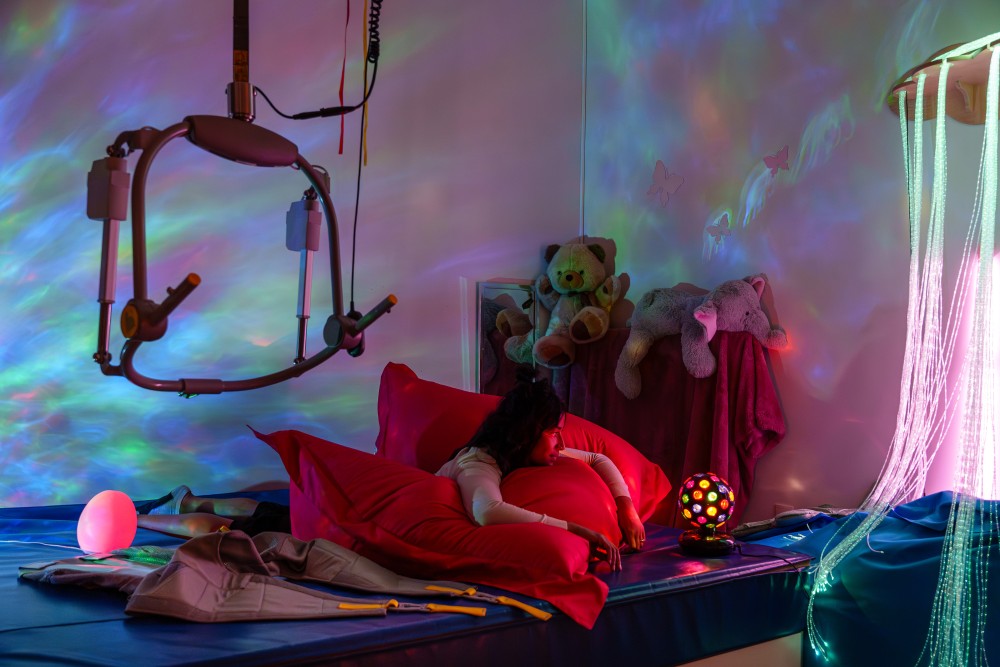

Electric tilting spreader bar
Effortless transition from sitting to lying
- Usable with mobile hoist ‘Victor’ and ceiling lift
- For intensive use in institutions
- No burden for carers
- Easy positioning in the wheelchair
- "Up/down" and “lie/sit” functions: can be operated simultaneously
- Unlimited rotation of the tilting spreader bar
- Free field of vision and sufficient central headroom thanks to 2 lateral drives
- Suitable for different types of slings
- Safe and high-quality material: made of stainless steel

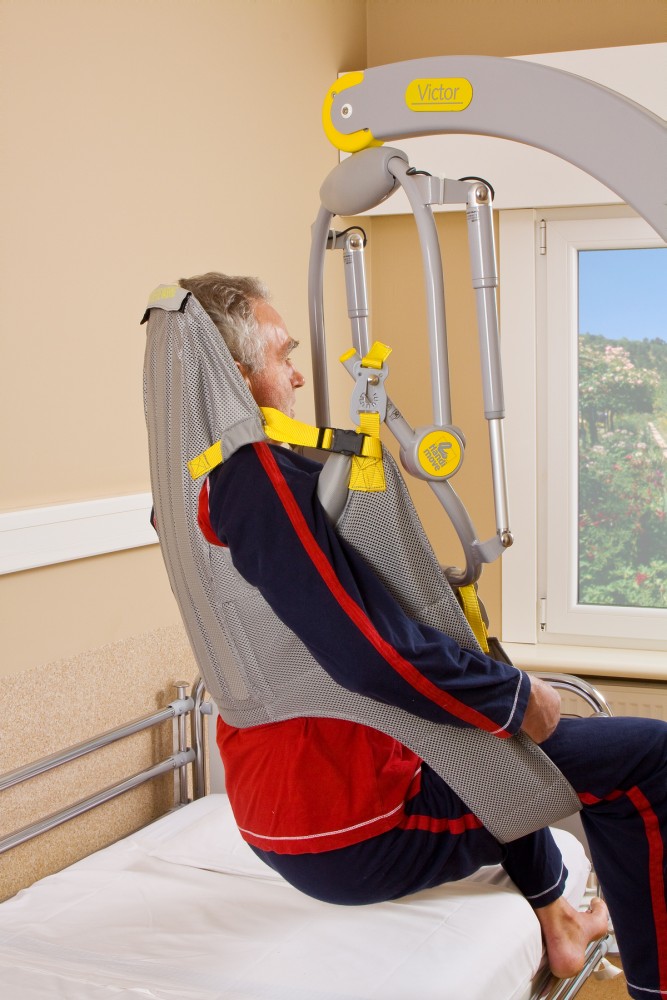

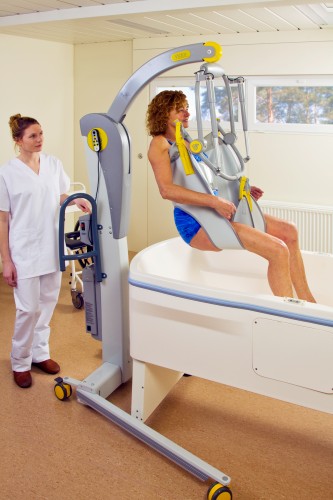

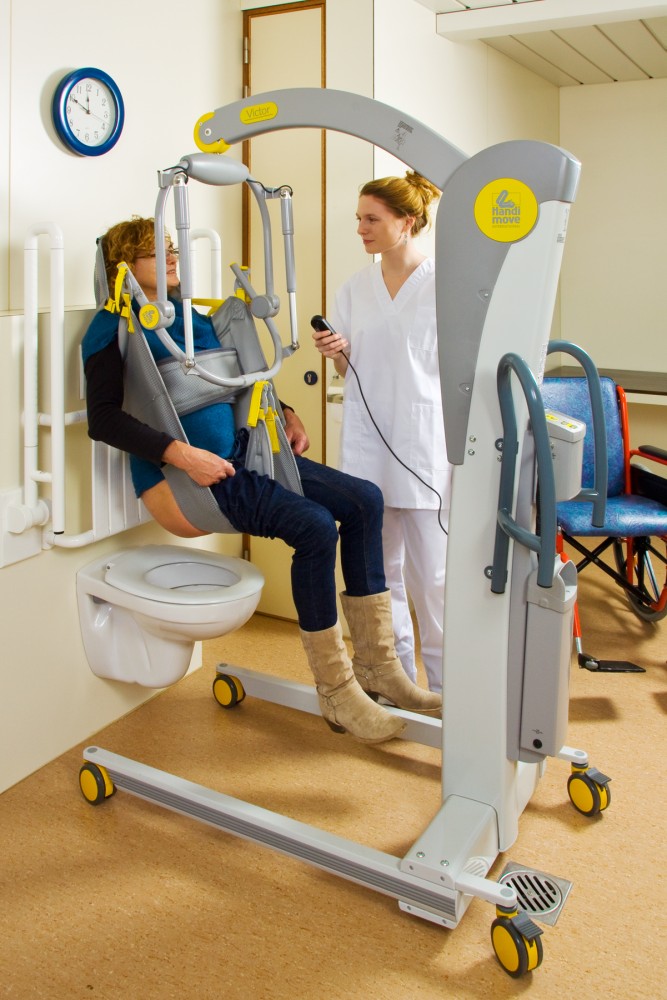

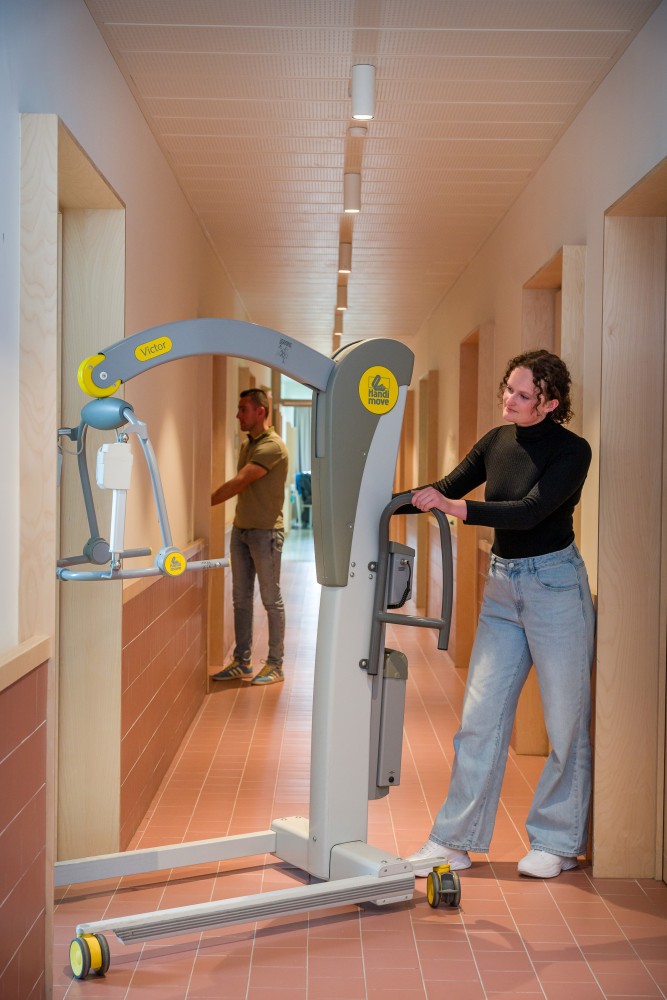

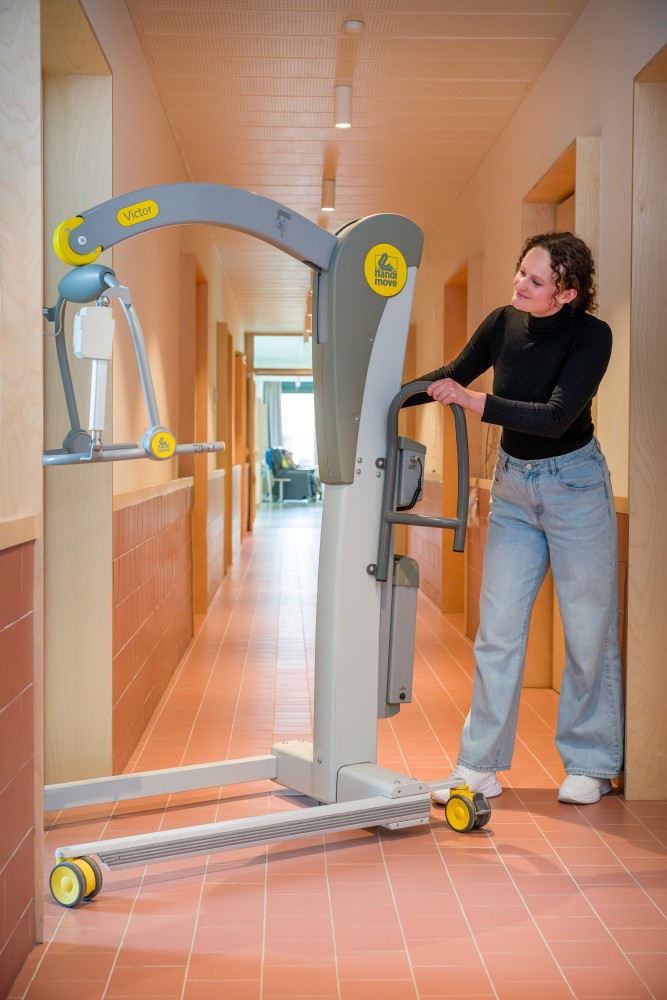

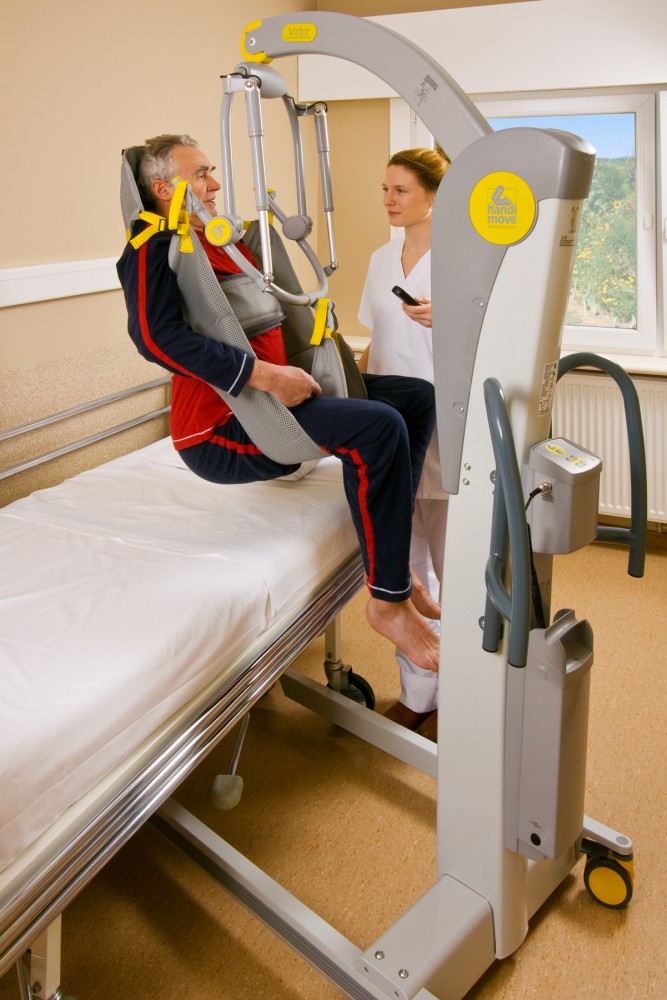

Compatible with Handi-Move's "Victor" mobile lift
The Handi-Move "Victor" mobile lift is a mobile passive lift for intensive use in a professional environment. This device is designed for the fast, efficient, and frequent lifting of people with limited mobility in, for example, care facilities for people with disabilities, residential and care centers, hospitals, etc. The lift can be used flexibly in all situations.

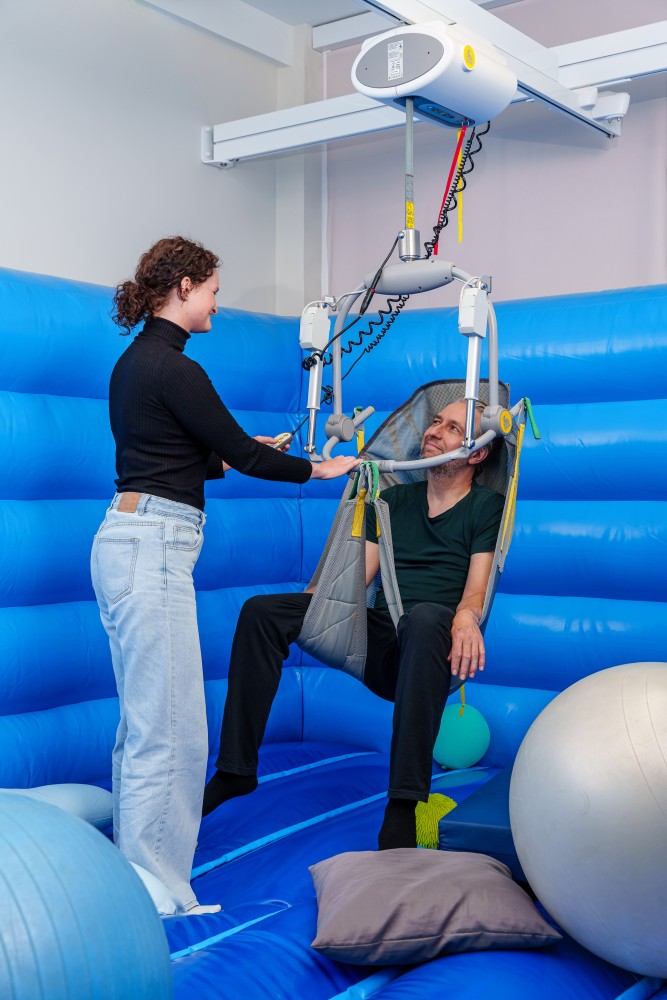

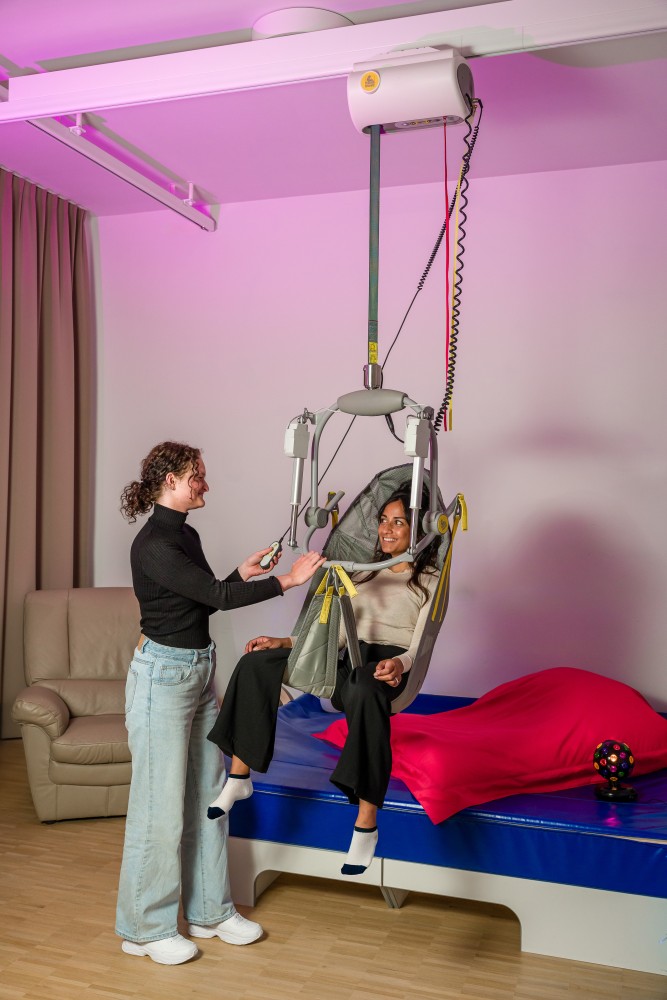

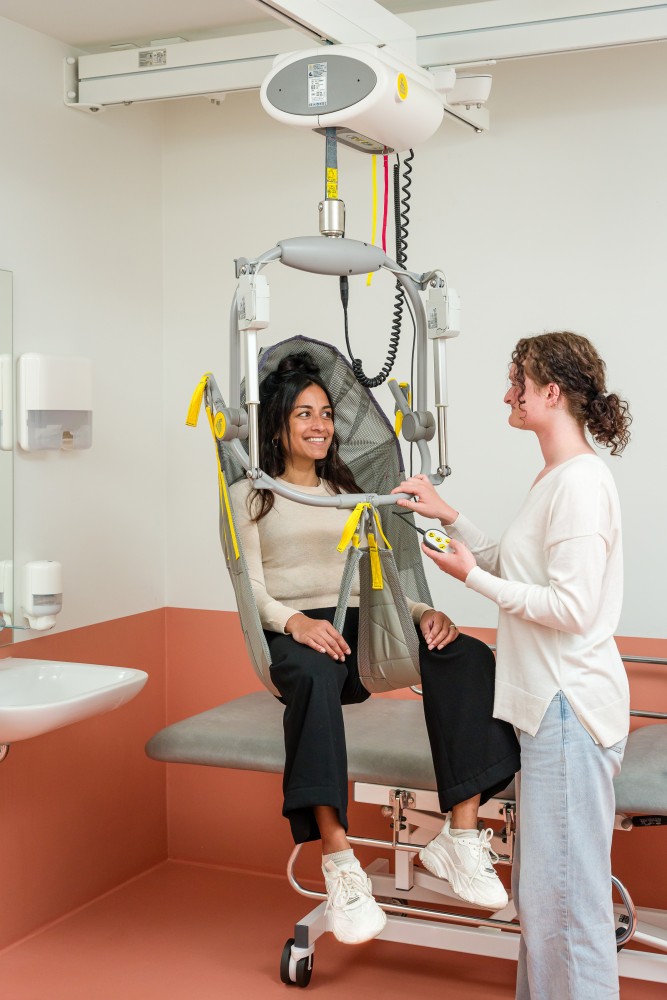

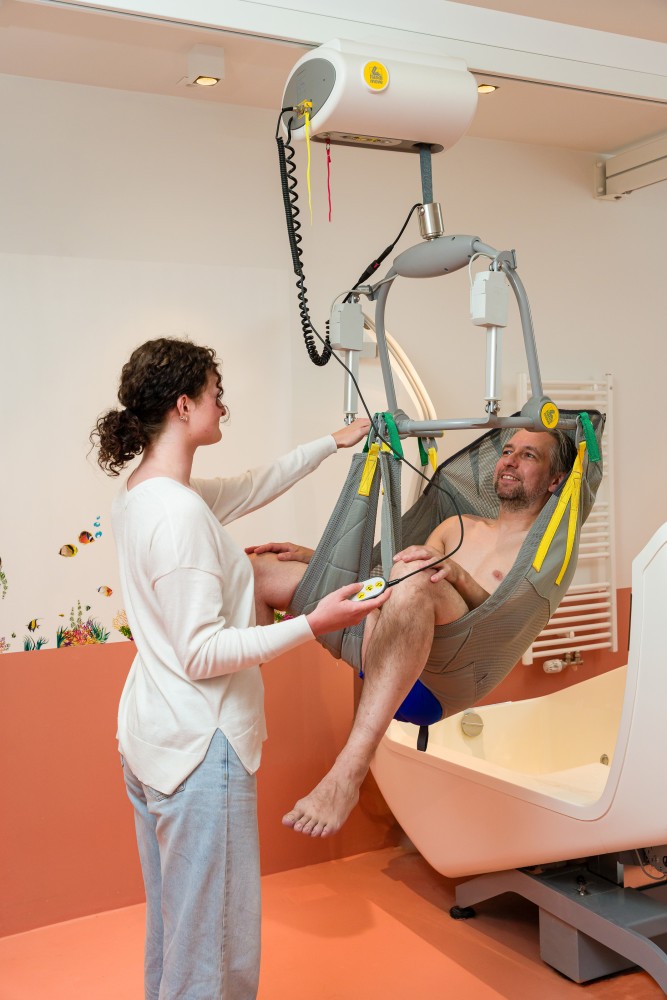

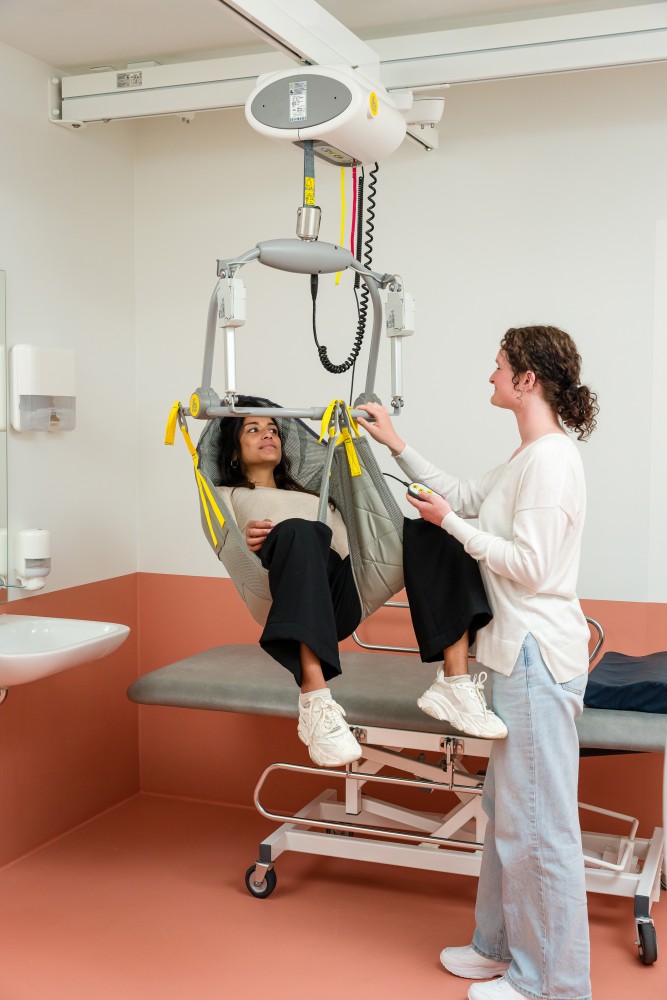

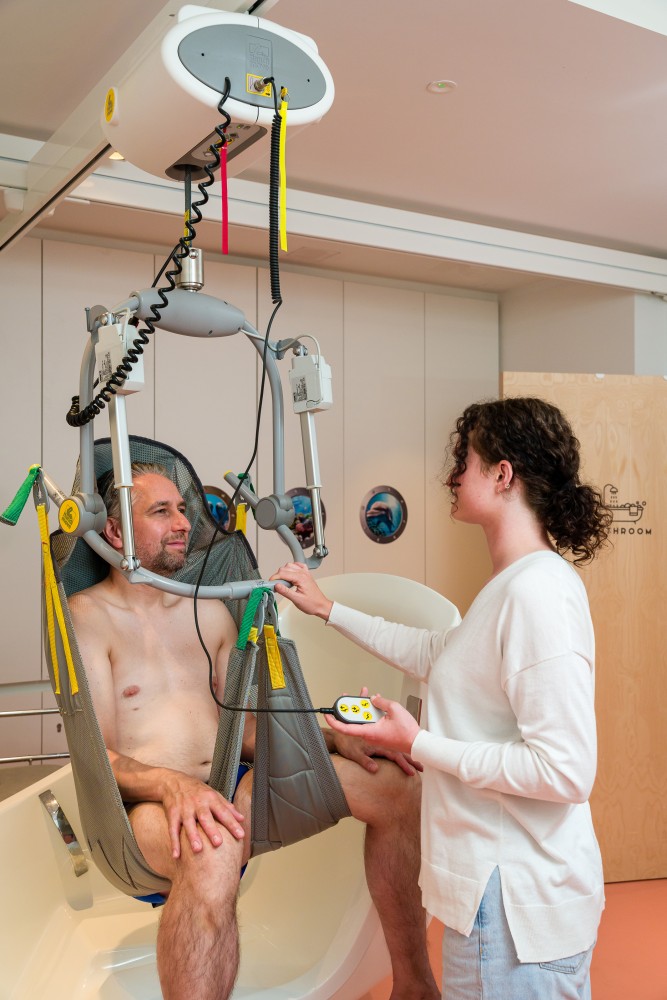

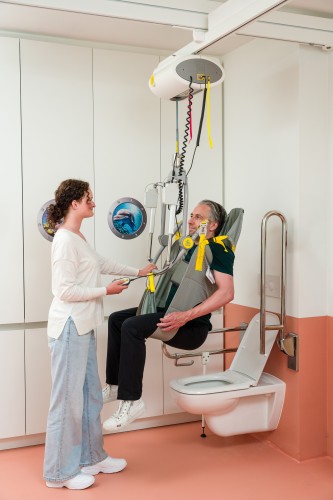

Compatible with Handi-Move ceiling lifts

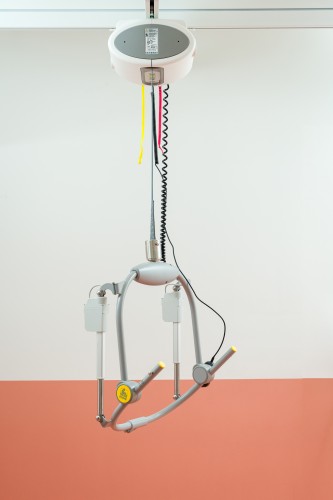

Handi-Move ceiling lift systems allow you to move freely around your home or institution without obstacles. The 2800 series ceiling lift system consists of a ceiling rail combined with a fixed ceiling motor. The electric tilting spreaderbar is attached to the ceiling motor.

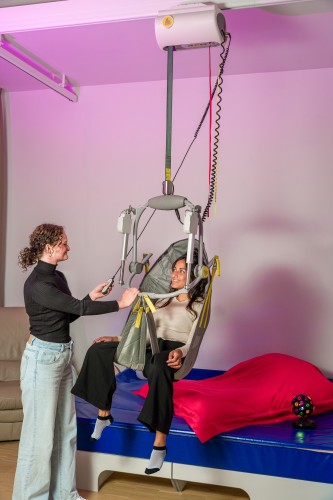

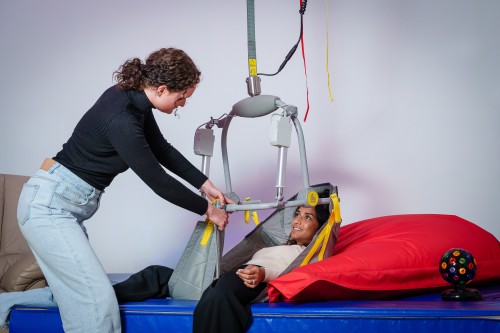

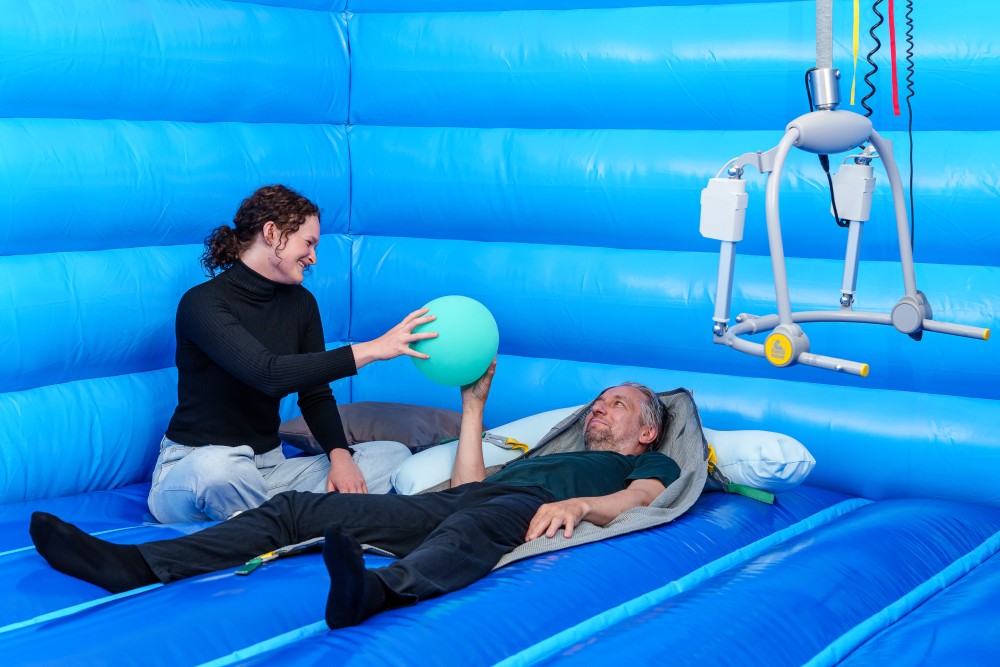

Effortlessly from sitting to lying down
With the Handi-Move electric tilting spreaderbar, people can easily be moved from a sitting position to a lying position, and vice versa. The user is brought into a fully seated position.
Functions such as raising, lowering, and tilting the spreaderbar can be operated simultaneously with a hand control.
The tilting spreaderbar can rotate freely on the lift.

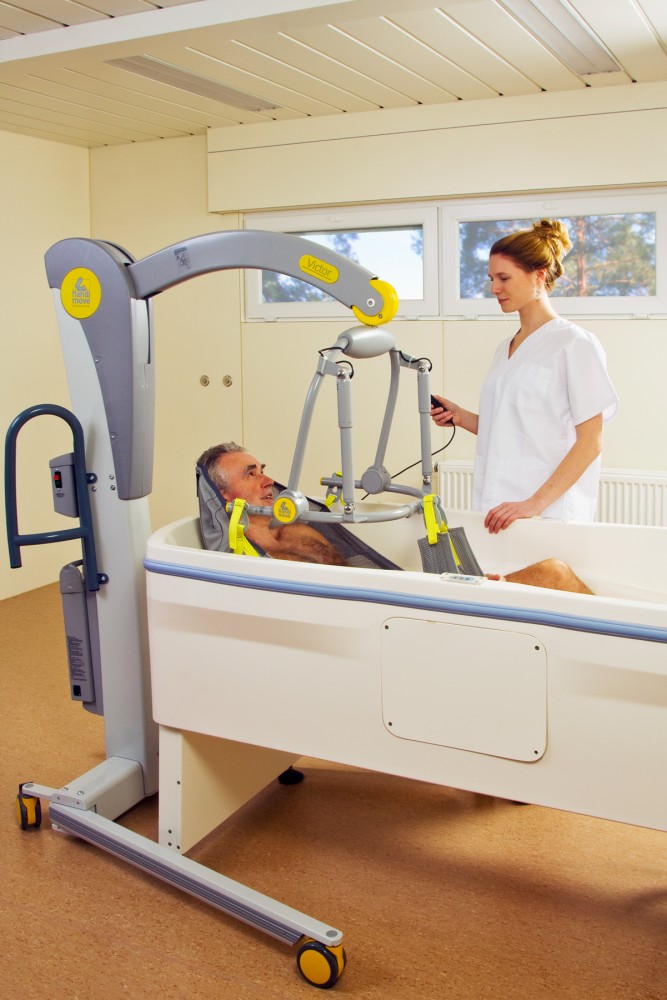

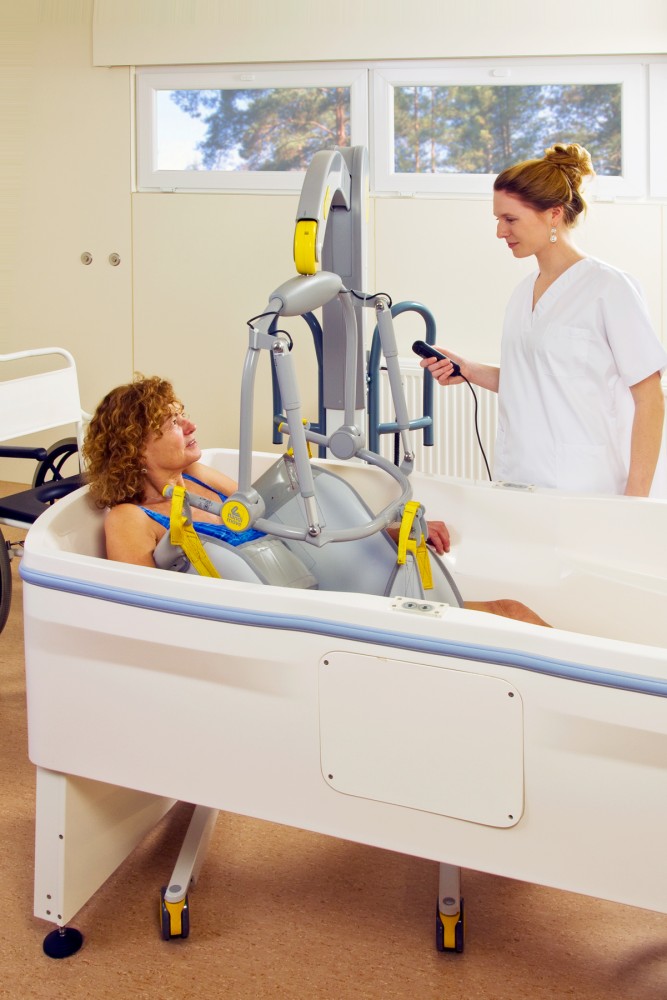

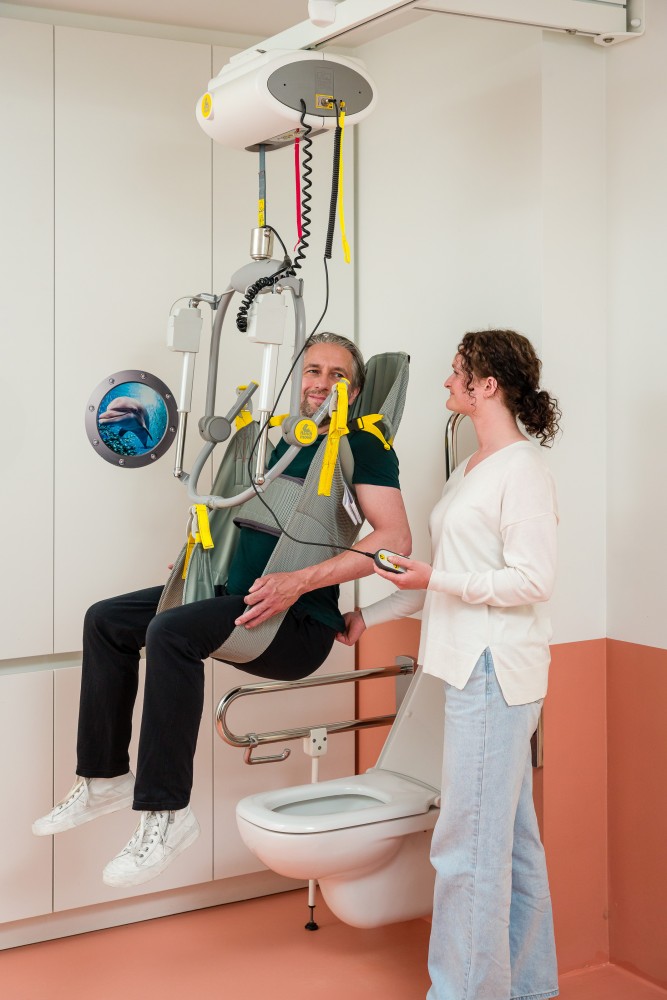

With the electric tilting spreaderbar and a lift, you can easily move from the wheelchair to the bed, bath, care table, and toilet.
For intensive use in care facilities
The tilting spreaderbar, with a lifting capacity of up to 225 kg, is suitable for long-term and intensive use.
Various care facilities are already using this lifting system.
The electric tilting spreaderbar can be used on both the 'Victor' mobile lift and the Handi-Move ceiling lift with fixed motor, in combination with slings.
No strain on caregivers
Ergonomic: with Handi-Move's electrically operated tilting spreaderbar, individuals can be moved easily, quickly, and without strain on caregivers from a lying position to a perfect sitting position, and vice versa.
No additional actions or physical effort are required from the caregiver to place the user correctly in the wheelchair. The position can be adjusted at any time during the transfer.
The sling clips are always hooked onto the tilting spreaderbar in the same way, regardless of the type of user.
The magnetic hand control can be attached to the tilting spreaderbar.
Time savings for caregivers: lifting twice as fast

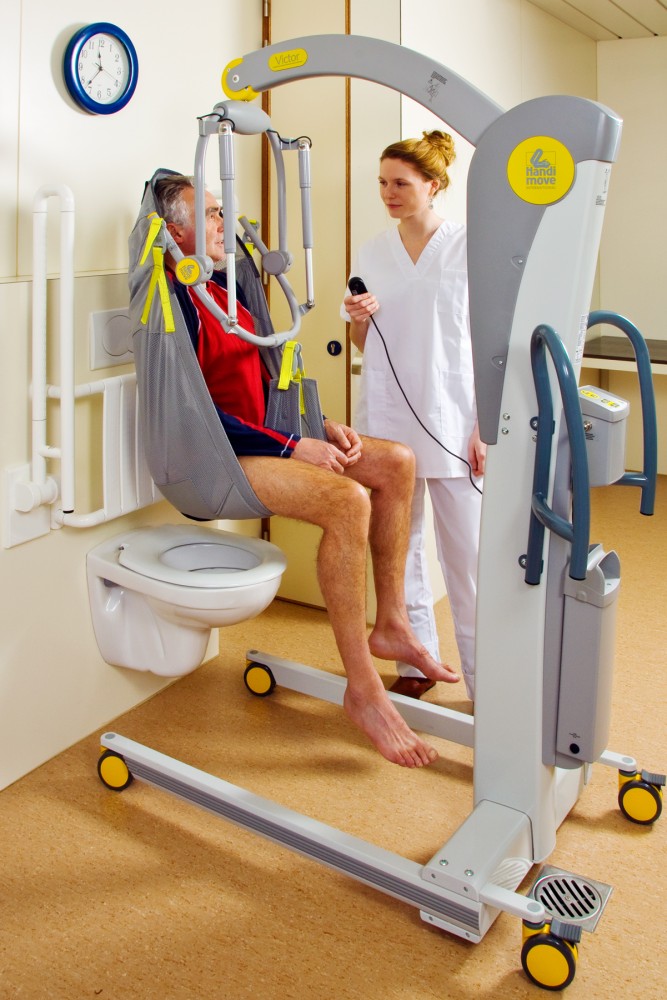

In combination with the 'Victor' mobile lift, the electric tilting spreaderbar saves caregivers time: lifting twice as fast.
Functions such as raising, lowering, and tilting the spreaderbar can be operated simultaneously.
Ascending speed
- without load: 5.2 cm/sec
- load 90 kg: 4.9 cm/sec
- load 225 kg: 4.6 cm/sec
Descending speed
- without load: 4.9 cm/sec
- load 90 kg: 5.7 cm/sec
- load 225 kg: 5.7 cm/sec
Tilting spreaderbar
- from sitting to lying position: 14 sec. (without load)

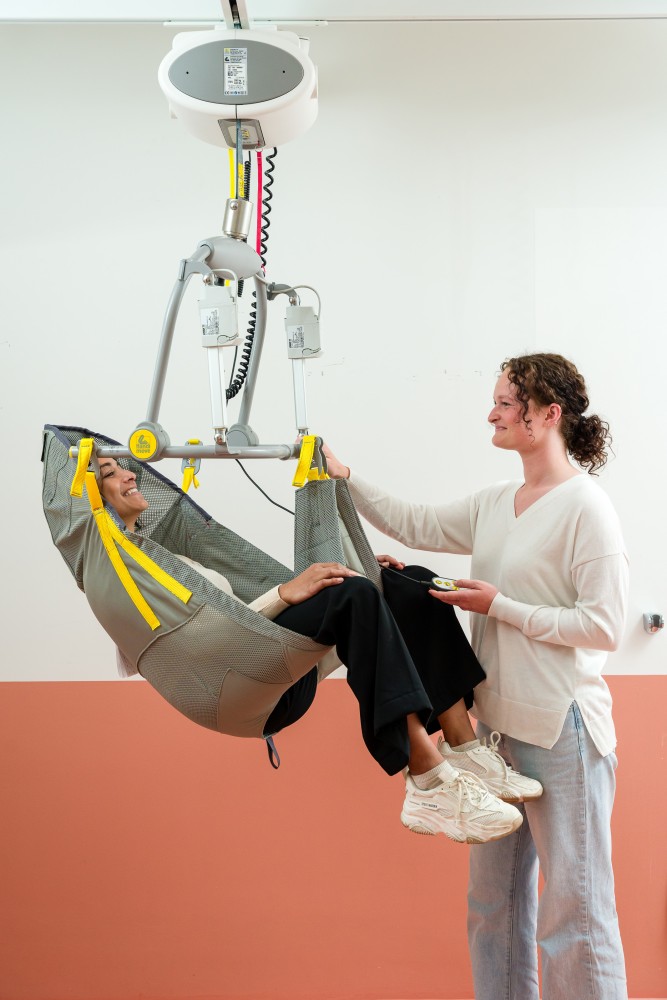

Unobstructed field of vision and sufficient headroom in the center, thanks to two side-mounted drives
The tilting spreaderbar operates with two side-mounted drives, providing both an unobstructed field of vision and sufficient headroom in the center. This is an advantage over lifts with a centrally mounted drive, which obstructs the field of vision.

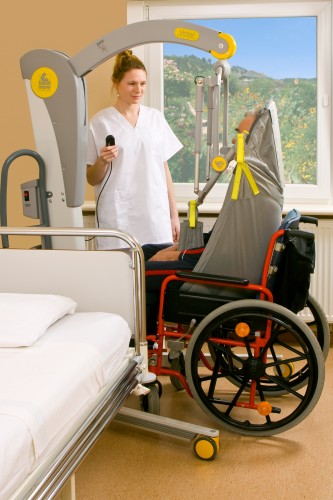

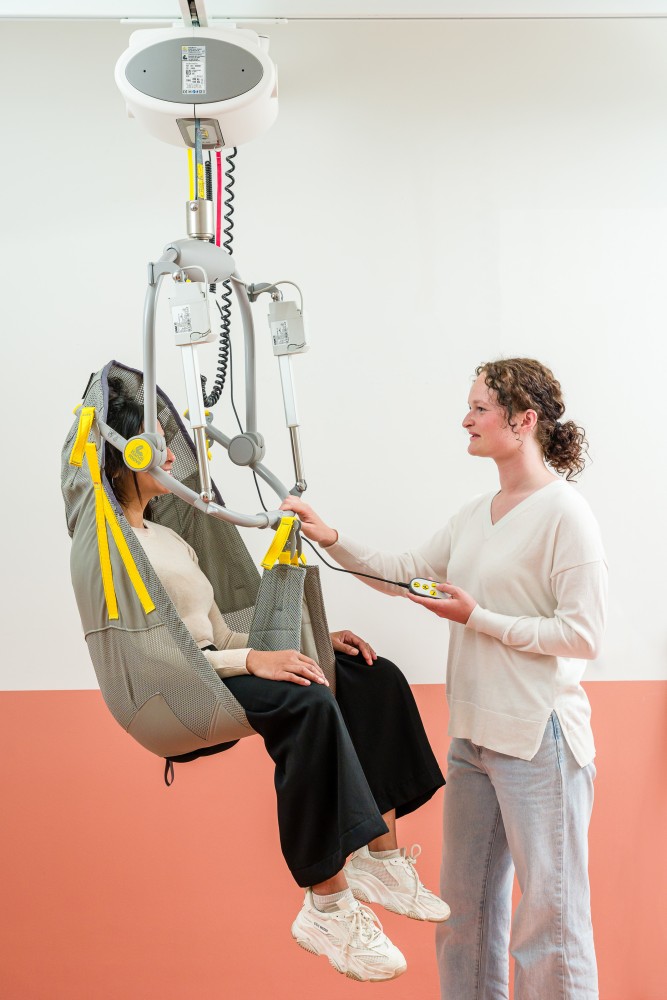

Easy positioning in the wheelchair
The electric tilting spreaderbar allows the user to be easily positioned in a perfect sitting position. The user's position can be adjusted at any time during the transfer. The tilting spreaderbar can rotate freely on the lift. Functions such as raising, lowering, and tilting the spreaderbar can be operated simultaneously by the caregivers.
This means greater comfort for users and easy positioning for the wheelchair.

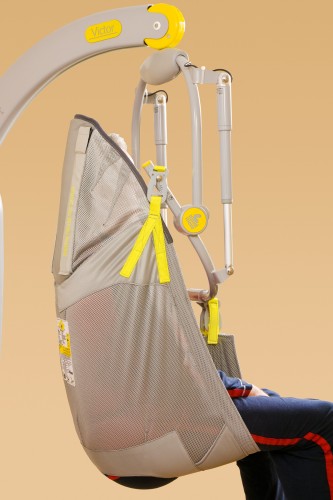

Suitable for different types of slings
The electric tilting spreaderbar can be used with different types of slings: standard slings, toilet and bath slings with or without head support, and custom-made slings.

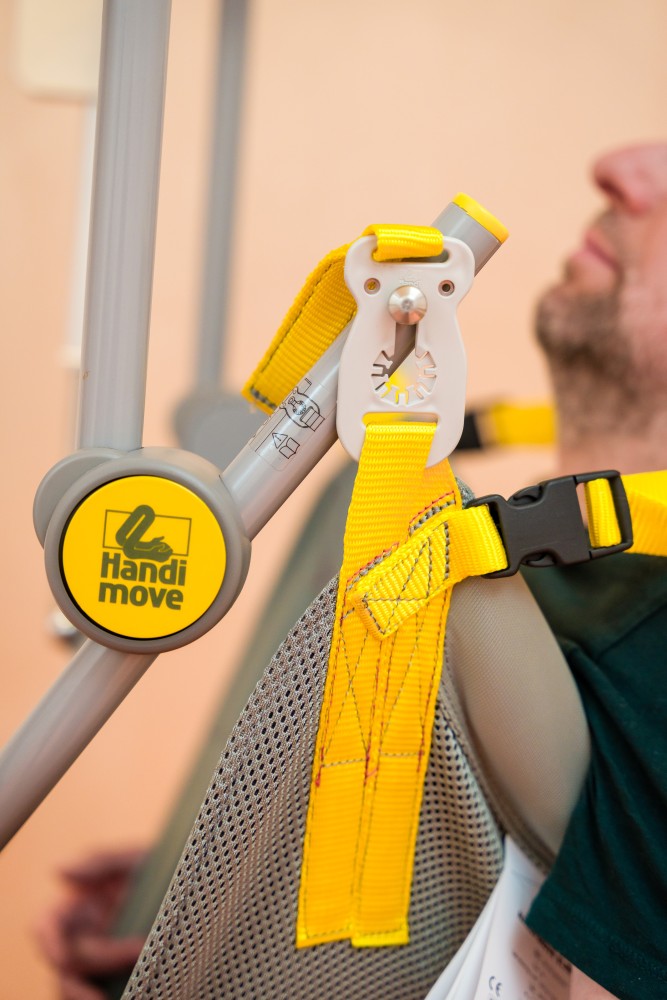

The slings are easily attached to the spreaderbar using plastic clips. These are secured and reinforced with metal.
The user can fully recline to a sitting position in the slings
Safe and high-quality material: made from stainless steel
To prevent oxidation when used in damp areas, it is made from painted stainless steel.
The shielded hinges ensure a safe working environment.
The central cable bushing allows the spreaderbar to rotate freely.
Replaceable battery box or direct charging.
